Berner AI10-E-1048AA

Unheated 48" Air Curtain

Architectural Icon 10

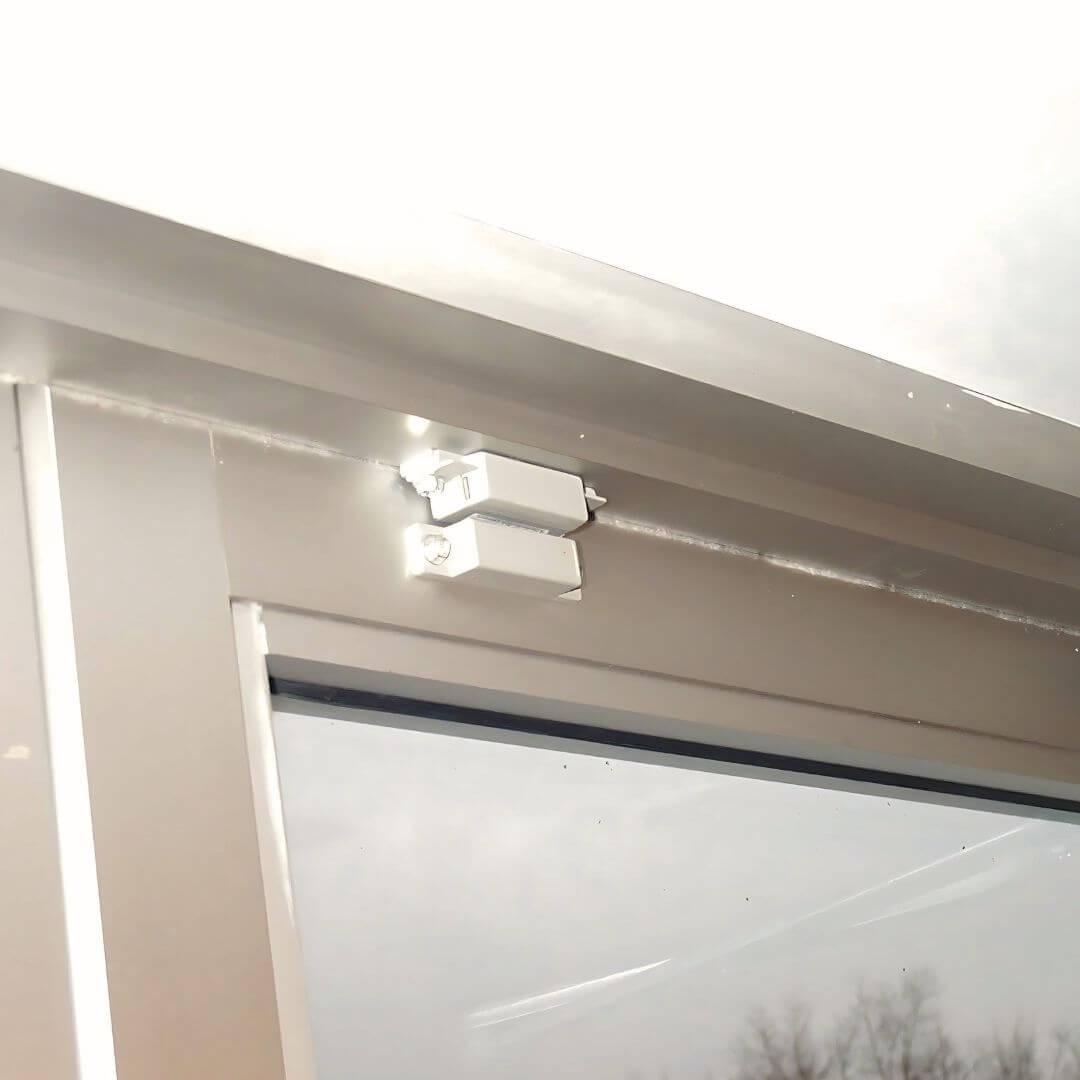

(Includes unit mounted switch & 24v automatic door switch)

Original price was: $4,357.Current price is: $2,833.

847.674.0000

Call us Monday – Friday 8 am – 6 pm CST

Have questions? Need bulk pricing?

Please feel free to contact us for additional help with your selections and to discuss available discounts

* Free Shipping is included to a standard commercial address and requires off-loading from the recipient
* Non-standard delivery locations or off-loading methods may carry additional fees.
* See the shipping tab below for additional details

Berner AI10-E-1048AA Air Curtain
Product Description

Berner Architectural Icon AI10-E-1048AA 48″ Air Curtain

The Berner Architectural Icon AI10-E-1048AA is a high-performance 48″ air curtain for mounting heights up to 8 feet. It features a 1/2 HP motor, delivering effective environmental separation and insect control. This compact unit is ideal for standard single-door applications in space-constrained areas.

The AI10-E-1048AA boasts impressive specifications. It achieves a maximum velocity of 3975 fpm at the nozzle with a CFM of 1809. The power rating is .63 kW. It incorporates a high-efficiency, low-noise, articulating, three-vane Pro-V Nozzle. The unit operates at 53/56 dBA, balancing performance with quiet operation.

Key Features of the Berner Architectural Icon AI10-E-1048AA Air Curtain:

  • Certified performance: AMCA certified for all heat offerings
  • Advanced control: Factory-installed Intelliswitch™ digital controller with optional Berner AIR™ smart controller and BACnet integration
  • Energy code compliant: Meets ASHRAE 90.1-2019, IECC 2018, and ASHRAE 189.1 vestibule exception requirements
  • Efficient design: Single 1/2 HP motor in a 48-inch housing for standard doorways
  • Customizable finish: Available in stainless steel or custom colors

Applications:

  • Retail entrances: Maintains interior climate at single-door storefronts
  • Office buildings: Energy-efficient solution for standard-width side entrances
  • Healthcare facilities: Supports air quality control and insect deterrence at secondary entry points

The Berner Architectural Icon AI10-E-1048AA Air Curtain combines energy efficiency with compact design. It’s an ideal solution for 4-foot doorways, meeting both technical requirements and architectural standards. Installation is straightforward, and the unit is built for easy maintenance.
